EVAPORATIVE COOLER


WATER CHILLING PLANT

RANGE OF EXPERIMENTS
To determine Heat transfer rate of heating & cooling.
To calculate Effectiveness of Evaporative cooler.
The experiments can be conducted at various values of input & calculation can be made accordingly.

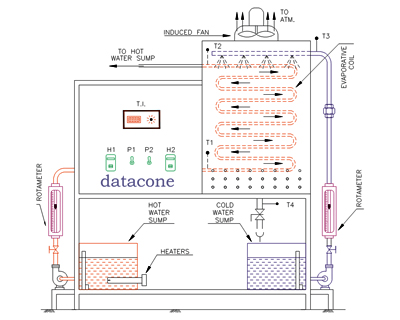

EXPERIMENTAL SETUP :

Duct : 500 x 500 x 800 mm Duct in which evaporative coil is fitted.
Evaporative Coil : Hot water is passed through evaporative coil made of copper.
Air Fan with Motor : This suction type air fan is fitted on the top of the duct.
Hot water cir. pump : 1/2 HP. 230 V AC hot water circulating pump is used to circulate hot water into the evaporative coil.
Cold water Cir. pump : 1/2 HP. 230 V AC cold water circulating pump is used to circulate cold water which spray on the evaporative coil.
Heating Arrangement : Evaporative cooler provided along with geysers.
Rotameters : for flow measurement of hot & cold water. Range : 0 - 11 LPM
Supply Tank : 300 x 300 x 450 mm storage tank one each for hot & cold water.
Set of thermocouples.

CONTROL PANEL :
12 Channel Digital Temperature Indicator
Switches for Heaters, pumps & Air fan.
Voltmeter : 0 - 250 V.
Ammeter : 0 - 15 A.

SPACE REQUIRED :
1.5 m. (L) x 1.0 m (W).
WEIGHT :
@ 110 Kg
SERVICE REQUIRED :
POWER SUPPLY : 440 V. A.C., 50 Hz.
